Aerial platform ForSte DA328

Aerial platform forSte 28DA
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

28,00 m

rotacion torreta 2
TURRET ROTATION

700º

estabilizador 3
OUTRIGGERS

HE+HE

altura cesta 4
BASKET FLOOR HEIGHT

26,00 m

dimensiones cesta 5
BASKET DIMENSIONS

180x70x110 cm

controles 6
CONTROLS

Electric

alcance lateral 7
MAX OUTREACH

16,00 m

cesta 8
BASKET

Aluminium

pma 9
GVW

≥ 5,6 ton

carga cesta 10
BASKET PAYLOAD

225 kg

rotacion cesta 11
BASKET ROTATION

90º + 90º

cabrestante 12
WINCH

No

Urban solution with high level of compactness

N

High performance double articulation

N

Compact

N

Multiple stabilization possibilities

N

Robustness with great mobility

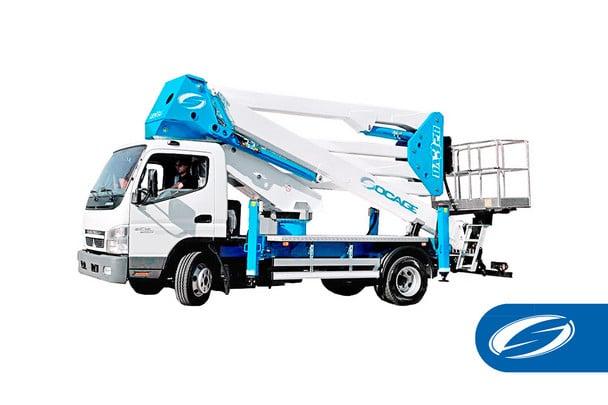

The forSte 28DA is an articulated aerial platform from Socage’s mid-height range, installed on trucks from 5.6 tons.

It reaches a working height of 28m and a horizontal reach of 16m, in addition has a large load capacity of 225 kg (2 operators + material)

The forSte 28DA has an excellent performance and extremely compact dimensions, very similar to platforms on 3.5 ton vehicles, it is only 6900 mm (*) in length by 2100 mm (*) in width.

Designed for professional and intensive use

Designed for professional and intensive use, the robust structure of the aerial part is designed for mounting on trucks with PTTs greater than 3500kg. Get an articulated platform of great stability and comfort during movement and work at height. The wide work diagram increases the productivity of the platform and meets the most demanding needs of all types of professionals working at height.

Equipped with SOCAGE HE + HE stabilization, a multi-zone stabilization system with hydraulically extendable vertical stabilizers that automatically calculates the safe working area depending on the opening of the stabilizers, allowing the operator to take advantage of the available space for stabilization.

The extra long path facilitates stabilization, allowing the equipment to overcome greater slopes common in urban areas especially.

It incorporates the most advanced components and technological advances, achieving a platform with high performance and quality finishes, reliable and easy to use.

Great mobility

The great mobility due to its small dimensions makes the ForSte 28Da aerial platform an ideal solution for all types of work in industries and in urban centers with high traffic and difficult access, where other platforms with the same performance have difficulty moving or cannot access.

 (*) depends on the truck where the assembly will be done

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL FEATURES

  • Aluminum basket: dimensions 1800 x 700 x 1100 mm
  • Hydraulic rotation basket 90° + 90°
  • Rotation turret 700°
  • Multi-zone stabilization (differentiated areas)
  • Double work area with stabilization in shape
  • Pipes and cables installed inside the boom
  • Hydraulic opening of the crossmember
  • Vertical stabilizers with extra stroke
  • Engine start / stop control from the basket
  • Digital hour counter
  • 4 plates to stand to the ground
  • Socket 230v
  • Magnetic roto-lamp on the vehicle cabin
  • Cataphoresis
  • Tool trunk
  • Under-run
  • Hydraulic stabilizers (HE+HE)
  • Aluminium side-boards
sicurezza

SAFETY DEVICES

  • Emergency and stop button
  • Controllo incrociato stabilizzatori aperti
  • Multi-axial device for visual control of frame stabilization
  • Intelligent cabin anti-collision sensor
  • Load limiter in the basket
  • Moment limiter with double safety and control of correct operation
  • Emergency manual pump
  • Chassis flatness sensor
  • Flanged block valves
  • Differentiated filtering hydraulic system with high efficiency filters both on the delivery lines and on the return lines
  • Automatic leveling of the basket
  • PTO automatic cut-off
  •  Control from the basket for acoustic signal

ASSEMBLY AVAILABLE ON

fuso isuzu

(*) Do you want to install the platform on another model? Contact us.
