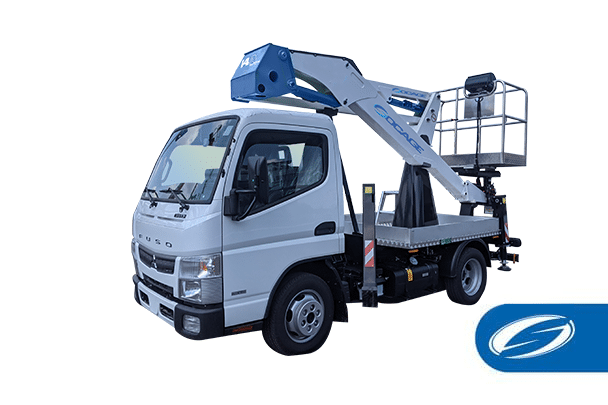

Small bucket truck 14A

Small bucket truck 14A
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

13,70 m

rotacion torreta 2
TURRET ROTATION

700º

estabilizador 3
OUTRIGGERS

H+H

altura cesta 4
BASKET FLOOR HEIGHT

11,70 m

dimensiones cesta 5
BASKET DIMENSIONS

140x70x110 cm

controles 6
CONTROLS

Electric

alcance lateral 7
MAX OUTREACH

7,20 m

cesta 8
BASKET

Aluminum / Fiberglass
Polyethylene

pma 9
GVW

3,5 tn

carga cesta 10
BASKET PAYLOAD

250 kg

rotacion cesta 11
BASKET ROTATION

90º + 90º

cabrestante 12
WINCH

No

Urban compactness

N

Compact

N

Simplicity and reliability

N

Great mobility

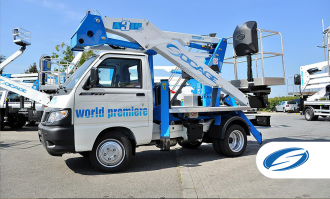

The SOCAGE forSte A314 City is the urban version of the successful ForSte A314 articulated platform. Capable to reach a working height of 13.70 m (*)  and horizontal reach of 7.20 m, with a load capacity of 250 kg in the aluminum basket. (2 operators + material).

It stands out especially for being an extremely compact articulated platform that allows assembly in different vehicles with reduced dimensions and wheelbase with a PMA less than 3500kg.

A reliable and easy-to-use platform that guarantees great mobility and excellent behavior in the city. Its reduced dimensions allow it to work in places with difficult access and arduous movement, ideal for urban centers and historical centers where most vehicles cannot access.

Simplicity and versatility

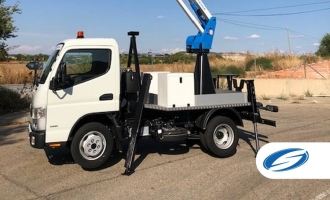

The stabilization system may vary depending on the vehicle where the platform is mounted. In any case, if possible, the priority should be given to fixed vertical stabilization, because it provides greater simplicity and versatility of use, as well as less space occupation, an aspect highly valued at work in the urban zone.

The electro-hydraulic controls allow great precision and simplicity in movements. All the components are protected inside the boom, including the extension cylinder, to avoid damage from impacts or external elements.

The reduced weight of the set allows us to offer high quality optional equipment to satisfy the demand of all our customers. (*)

The urban character together with the hybridization of the model allow sustainable applications with the environment for a work without emissions in the center of cities.

Great mobility

 The versatility and great mobility of the forSte A314 city make it an ideal tool for all types of professionals who carry out their work in urban centers: such as pruning, maintenance of lighting, cleaning, and telecommunications among others.

(*) It depends on the vehicle where the assembly is carried out.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL FEATURES

  • Hydraulic rotation  basket 90º + 90º
  • Rotation turret 700º
  • Aluminum basket: dimensions 1400 x 700 x 1100 mm
  • Pipes and cables installed inside the arm
  • H + H stabilizers (*)
  • Proportional electro-hydraulic controls with speed regulation of all movements
  • Engine start / stop control from the basket
  • Possibility of simultaneous operation
  • 230V and 12V socket on the basket
  • Cataphoresis treatment with powder coating
  • 4 ground support plates
  • Boom and column painting: white RAL 9016
  • Frame painting: black RAL 9005
  • Head and hydraulic cylinders painting: blue RAL 5015

(*)  It depends on the vehicle where the assembly is carried out.

sicurezza

SAFETY DEVICES

  • Unintentional maneuvering protection bar
  • Basket controls protection
  • Magnetothermic with differential protection on the 230V line
  • Automatic leveling of the basket
  • Inclinometer
  • Flanged block valves
  • Emergency and stop button
  • Manual emergency pump
  • PTO with gearbox saver
  • Digital hour meter in the cabin
  • Cab stabilizers closed warning light

ASSEMBLY AVAILABLE ON

fuso piaggio iveco isuzu renault mercedes ford

(*) Do you want to install the platform on another model? Contact us.
