Boom lift truck ForSte 39TJJ

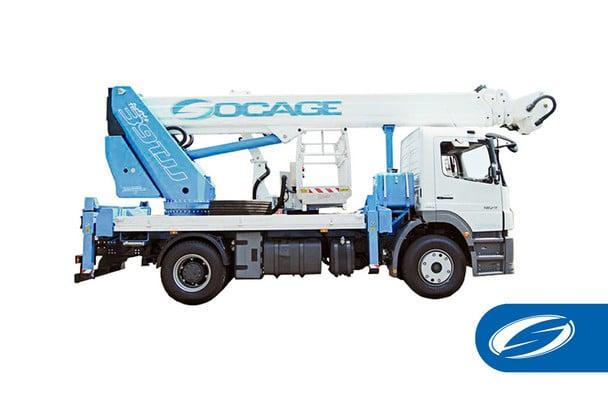

Aerial Platform ForSte 39TJJ Socage 1
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

38,50 m

rotacion torreta 2
TURRET ROTATION

700º

estabilizador 3
OUTRIGGERS

HE+HE

altura cesta 4
BASKET FLOOR HEIGHT

36,50 m

dimensiones cesta 5
DIMENSIONS

230/330x90x110 cm

controles 6
CONTROLS

Electric

alcance lateral 7
MAX OUTREACH

30 m

cesta 8
BASKET

Aluminium

pma 9
GVW

18 tn

carga cesta 10
BASKET PAYLOAD

300 kg

rotacion cesta 11
BASKET ROTATION

360º

cabrestante 12
WINCH

500/1000 Kg

Extremely compact dimensions

N

Robustness with great mobility

N

Highly versatile double JIB

N

Large scope of work

N

Multi-zone stabilization system

The Socage forSte 39TJJ is a double JIB telescopic aerial platform that can be installed on trucks from p.t.t 18 tons. This model is provided with a secondary boom that allows the equipment to perform maneuvers that would not be possible on a platform with only one JIB .

It reaches a working height of 39m and a horizontal reach of 30m, in addition has a large load capacity of 300 kg (3 operators + material)

The extremely compact measurements of the set make it an excellent solution for working in hard-to-reach industrial and urban areas.

Safe and secure work area

The forSte 39TJJ is equipped as standard with a multi-zone stabilization system that allows the operator to choose between different options depending on the available space and required features, the electronic platform control system automatically calculates the safe work area, based on the position chosen aperture of the four stabilizers.

The emergency controls are remotely controlled by radio control to allow the operator to position himself according to the best point of visibility of the entire assembly during the maneuver, to avoid the obligation to control from a fixed position with limited visibility.

The forSte 39TJJ can be equipped with a boom mounted hydraulic winch with a capacity of 500/1000 kg, which can be used by removing the aluminum basket.

The rotation of the aerial part is 700º; This feature increases the productivity of the platform, avoiding repositioning times.

Boom lift truck for sale

The dimensions of the aluminum basket are 2300 x 900 x h 1100 mm, expanding hydraulically to 3300 mm to increase the operating space. The rotation of the basket is 360º (180 ° left + 180 right) allowing great versatility of positioning for the work.

Check out our aerial platforms for sale.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL FEATURES

  • Extendable aluminum basket with dimensions 2300 / 3600x900x1100 mm
  • SOCAGE convertible basket possibility (Eternit)
  • Basket rotation 360 °
  • 700 ° turret rotation
  •  2 ° Jib 180 ° manual rotation
  • Possibility of winch on removable JIB
  • Automatic stabilization
  • Partially stabilized work areas
  • Auto lock
  •  Basket control station with console on Socage design including joystick and 7 “LCD display with real-time information
  • Intercom with headphones for basket-ground communication
  • Main and auxiliary motor start / stop control from the basket
  • Multifunction radio control for ground emergency control of the aerial part and stabilization
  • Electric hour counter
  • Automatic PTO disengagement
  • N ° 2 fixed roto-lamp on the vehicle cabin
  • 230V / 400V electrical socket
  • Heat exchanger on the hydraulic system
  • 2 folding sides, 2 fixed (h 150 mm)
  • 4 ground support plates (700 x 700 x 50 mm)
  • Anti-corrosion treatment on unpainted components
  • Aerial part painting: white RAL 9016
  • Painted frame and hydraulic cylinders: blue RAL 5015
sicurezza

SAFETY DEVICES

  • Emergency and stop button
  • Cross-check of open stabilizers
  • Anemometer
  • Load limiter in the basket
  • Moment limiter with double safety and control of correct operation
  • Multi axial device for visual control of frame stabilization
  • Emergency descent with electric pump (in the absence of the auxiliary motor)
  • Rotation brake of the turret with automatic insertion
  • Hydraulic system with differentiated filtering with high efficiency filters both on the delivery lines and on the return lines
  • Multifunction radio control for emergency control
  • Automatism for rotation lock with extension of the stabilizers on one side only
  • Chassis flatness sensor
  • Flanged block valves

ASSEMBLY AVAILABLE ON

(*) Customer’s choice
