Truck mounted boom lift ForSte 44TJ

Truck mounted boom lift 44TJ
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

43,50 m

rotacion torreta 2
TURRET ROTATION

700º

estabilizador 3
OUTRIGGERS

HE+HE

altura cesta 4
BASKET FLOOR HEIGHT

41,50 m

dimensiones cesta 5
DIMENSIONS

230/330x90x110 cm

controles 6
CONTROLS

Electric

alcance lateral 7
MAX OUTREACH

34,00 m

cesta 8
BASKET

Aluminium

pma 9
GVW

26 tn

carga cesta 10
BASKET PAYLOAD

600 kg

rotacion cesta 11
BASKET ROTATION

360º

cabrestante 12
WINCH

900/1500 Kg

Robustness with hig performance

N

Extremely compact dimensions

N

Maximum load capacity 600 kg

N

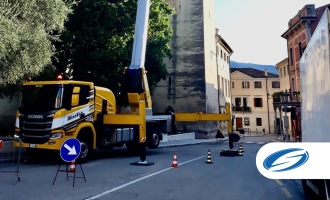

Large reach of work

N

Multi-zone stabilization system

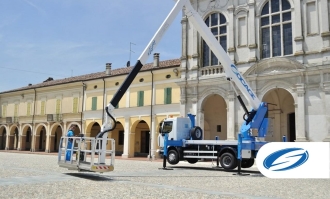

The truck mounted boom lift Socage forSte 44TJ is a telescopic boom lift with articulated jib that can be installed on trucks with a minimum weight of 18 tons.

It reaches a working height of 44m and a horizontal reach of 34m, in addition has a large load capacity of 600 kg (6 operators + material). If you need more height, you can think of our telescopic aerial platform 54TJJ

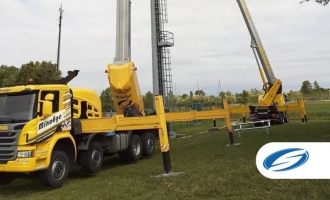

The forSte 44TJ is equipped as standard with a multi-zone stabilization system that allows the operator to choose between different options depending on the available space and required features, the electronic platform control system automatically calculates the safe work area, based on the position chosen aperture of the four stabilizers.

The rear stabilizers of the forSte 44TJ consist of 2 hydraulic extensions that increase the stabilization zone and therefore the maximum reach of the equipment.

The emergency controls are remotely controlled by radio control to allow the operator to position himself according to the best point of visibility of the entire assembly during the maneuver

The truck mounted boom lift forSte 44TJ can be equipped with a 900/1500 kg capacity boom mounted hydraulic winch, which can be used without the aluminum basket.

The rotation of the aerial part is 700º; This feature increases the productivity of the platform, avoiding repositioning times

Great positioning versatility for the job

The dimensions of the aluminum basket are 2300 x 900 x h 1100 mm, expanding hydraulically to 3600 mm to increase the operating space. The rotation of the basket is 360º (180 ° left + 180 right) allowing great versatility of positioning for the work.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL FEATURES

  • Extendable aluminum basket with dimensions 2300 / 3600x900x1100 mm
  • SOCAGE convertible basket possibility (Eternit)
  • Basket rotation 360°
  • Rotation turret 700°
  • 2 ° Jib 180 ° manual rotation
  • Possibility of winch on removable JIB
  • Automatic stabilization
  • Partially stabilized work areas
  • Auto lock
  • Basket control station with console on Socage design including joystick and 7 “LCD display with real-time information
  • Intercom with headphones for basket-ground communication
  • Main and auxiliary motor start / stop control from the basket
  • Multifunction radio remote control for ground emergency control of the aerial part and stabilization
  • Electric hour counter
  • PTO automatic cut-off
  • N ° 2 fixed roto-lamp on the vehicle cabin
  • 230V / 400V electrical socket
  • Heat exchanger on the hydraulic system
  • 2 folding sides, 2 fixed (h 150 mm)
  • 4 plates to stand to the ground (700 x 700 x 50 mm)
  • Anti-corrosion treatment on unpainted components
  • Aerial part  painting: white RAL 9016
  • Painted frame and hydraulic cylinders: blue RAL 5015
sicurezza

SAFETY DEVICES

  • Emergency and stop button
  • Cross-check of open stabilizers
  • Anemometer
  • Load limiter in the basket
  • Moment limiter with double safety and control of correct operation
  • Multi axial device for visual control of frame stabilization
  • Emergency descent with electric pump (in the absence of the auxiliary motor)
  • Rotation brake of the turret with automatic insertion
  • Hydraulic system with differentiated filtering with high efficiency filters both on the delivery lines and on the return lines
  • Multifunction radio control for emergency control
  • Automatism for rotation lock with extension of the stabilizers on one side only
  • Chassis flatness sensor
  • Flanged block valves

ASSEMBLY AVAILABLE ON

(*) Customer’s choice
