Truck mounted aerial platform ForSte 47TJJ

Truck mounted aerial platform 47TJJ
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

47,70 m

rotacion torreta 2
TURRET ROTATION

700º

estabilizador1
OUTRIGGERS

HE+HE

altura cesta 4
BASKET FLOOR HEIGHT

45,70 m

dimensiones cesta 5

BASKET DIMENSIONS

230/330x90x110 cm

controles 6
CONTROLS

Electric

alcance lateral 7
MAX OUTREACH

30,00 m

cesta 8
BASKET

Aluminum

pma 9
GVW

18 ton

carga cesta 10
BASKET PAYLOAD

600 kg

rotacion cesta 11
BASKET ROTATION

360º

cabrestante 12
WINCH

900/1500 Kg

Robustness with great mobility

N

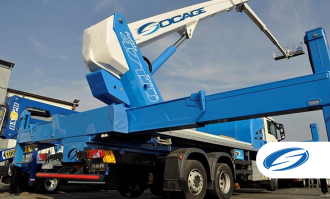

Maximum load capacity 600 kg

N

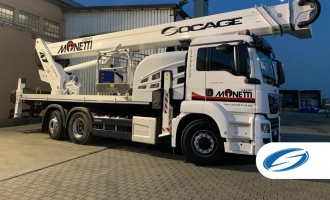

Double Jib with great versatility

N

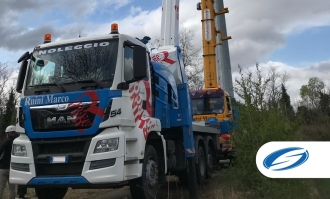

Large reach of work

N

Multi-zone stabilization system

The Socage forSte 47TJJ is a double JIB / jib telescopic aerial platform that can be installed on trucks with p.t.t. minimum from 18 tons. This model is provided with a secondary boom that allows the equipment to perform maneuvers that would not be possible with a basket with only one JIB / jib.

It reaches a working height of 47m and a horizontal reach of 30m, in addition has a large load capacity of 600 kg (6 operators + material)

This model is equipped as standard, on the platform controls, with an LCD screen (7 ″) that allows the operator to directly control different information such as: the 2D work area, the state of the limiter, the state of the stabilizers, etc.

The truck mounted aerial platform 47TJJ is equipped as standard with a multi-zone stabilization system that allows the operator to choose between different positioning options depending on the available space for the truck; In addition, the rear stabilizers of the 47TJJ consist of 2 hydraulic extensions that increase the stabilization area and, therefore, the maximum performance of the equipment.

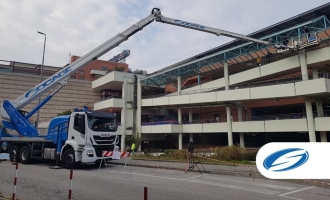

Truck mounted aerial platform 47TJJ | Large work area

The emergency controls are remotely controlled by radio control to allow the operator to position himself according to the best point of visibility of the entire assembly during the maneuver.

The rotation of the aerial part is 700º, considerably increasing the productivity of the truck by avoiding downtime due to repositioning of the platform. The 47TJJ can be equipped with a boom mounted hydraulic winch, with a capacity of 900/1500 kg, to be used as a crane after removing the aluminum platform.

The dimension of the aluminum basket is 2300 x 900 x h 1100 mm, expanding hydraulically to 3600 mm to increase the operating space.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL FEATURES

  • Extendable aluminum basket with dimensions 2300/3600 x900x1100 mm
  • SOCAGE convertible basket possibility (Eternit)
  • Basket rotatio 360°
  • Rotation turret 700°
  • 2 ° Jib 180 ° manual rotation
  • Possibility of winch on removable JIB
  • Automatic stabilization
  • Partially stabilized work areas
  • Auto lock
  • Basket control station with console on Socage design including joystick and 7 “LCD display with real-time information
  • Intercom with headphones for basket-ground communication
  • Main and auxiliary motor start / stop control from the basket
  • Multifunction radio remote control for emergency control of the aerial part from the ground and stabilization
  • Electric hour counter
  • Automatic PTO disengagement
  • N ° 2 fixed roto-lamp on the vehicle cabin
  • Socket 230V/400V
  • Heat exchanger on the hydraulic system
  • 2 folding sides, 2 fixed (h 150 mm)
  • 4 plates to stand to the ground (700 x 700 x 50 mm)
  •  Anti-corrosion treatment on unpainted components
  • Aerial part painting: white RAL 9016
  • Painted frame and hydraulic cylinders: blue RAL 5015
sicurezza

SAFETY DEVICES

  • Emergency and stop button
  • Cross-check of open stabilizers
  • Anemometer
  • Load limiter in the basket
  • Moment limiter with double safety and control of correct operation
  • Multi axial device for visual control of frame stabilization
  • Emergency descent with electric pump (in the absence of the auxiliary engine)
  • Rotation brake of the turret with automatic insertion
  • Hydraulic system with differentiated filtering with high efficiency filters both on the delivery lines and on the return lines
  • Multifunction radio control for emergency control
  • Automatism for rotation lock with extension of the stabilizers on one side only
  • Chassis flatness sensor
  • Flanged block valves
