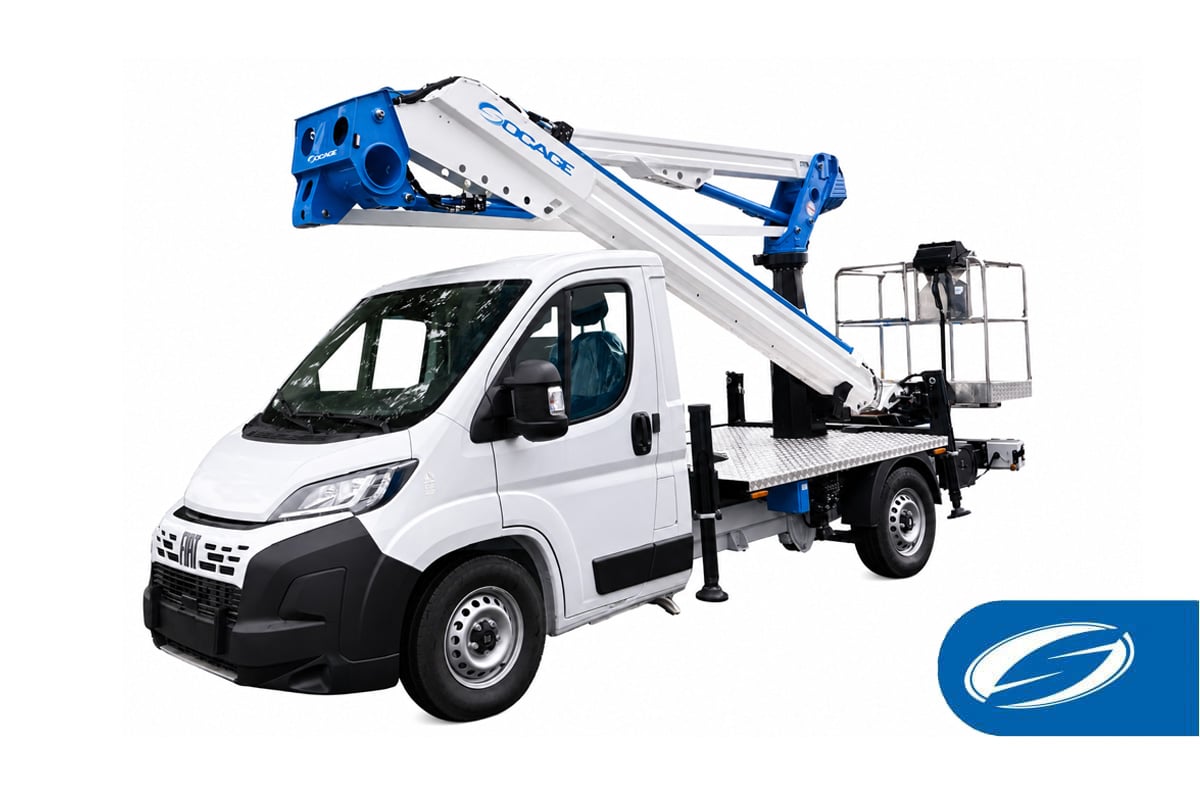

Cherry picker truck 20A SPEED
MAX BASKET FLOOR HEIGHT
19,70 m
TURRET ROTATION
700º
OUTRIGGERS
H + H
BASKET FLOOR HEIGHT
17,70 m
BASKET DIMENSIONS
1300x700x1100 mm
CONTROLS
Electric
MAX OUTREACH
12,00 m
BASKET
Aluminum
GVW
3,5 ton
BASKET PAYLOAD
230 kg
BASKET ROTATION
90º + 90º
WINCH
No
Urban compactness | Operational performance without compromising manoeuvrability
Maximum compactness
Easy to use
Designed for the city
Compact, high-performance articulated truck-mounted platform
Developed to meet the growing demand for compact, high-performance articulated truck-mounted platforms, particularly for urban applications, the new forSte 20A SPEED stands out for its unique balance between compact dimensions and operating capacity.
With a working height of 19.70m, a maximum outreach of 12 metres and an overall length of just 6.40 metres, the Forste 20A Speed ranks among the most compact in its category, allowing operators to work easily even in historic centres, congested urban areas and spaces with difficult access.
The optimisation of the structures and systems, the result of Socage’s research and development activities, has made it possible to create an articulated truck-mounted platform capable of ensuring high operating performance without compromising manoeuvrability and ease of use.
Certified exit at height in complete safety
The forSte 20A SPEED is the first model of the new Socage generation to have obtained the specific certification enabling this operation in compliance with current regulatory requirements.
Activation of the exit at height mode takes place directly from the ground controls. Once the work level has been reached, the operator can transfer safely using the double-lanyard system, always ensuring continuous anchorage throughout all phases of the manoeuvre.
STANDARD EQUIPMENT
AUTO - STABILIZATION
With a single button, even from the basket, it allows you to obtain a stabilization OK to work in a safe, simple and fast way.
The extra stroke of the Socage vertical stabilizers perfectly integrates the SPEED automatic stabilization guaranteeing a safe stabilization with greater ability to overcome irregularities.
TECHNICAL FEATURES
- Hoses and cables installed inside the boom
- SPEED automatic closure of the aerial structure
- SPEED automatic stabilisation
- H+H stabilisation with extra stroke
- Automatic stabilisation controls from the basket and from the ground
- Proportional electro-hydraulic controls with speed adjustment for all movements
- CAN BUS electronic management system
- 4 ground support plates
- 230V and 12V power sockets in the basket
- Possibility of simultaneous movements
- Cataphoresis treatment with powder coating
- Aerial structure centring indicator light on the basket
- Automatic engine speed regulation
- Front attachment of the basket
SAFETY DEVICES
- Socage Security System unintentional movement control
- Unintentional movement protection bar
- Protection of basket controls
- Thermal-magnetic circuit breaker with residual-current protection on the 230V line
- Safety bypass for operator recovery
- Automatic stabilisation
- Moment limiter with double safety system
- Automatic levelling from the basket
- Inclinometer
- Flanged blocking valves
- Emergency and stop button
- Manual emergency pump
- Possibility of remote emergency operation
- Automatic PTO disengagement
- Boom/cab anti-collision device
- Digital hour meter in the cab
- Cab indicator light for closed stabilisers
- Maintenance indicator light (Service)
- SSW Socage Safe Workplace: safety lights on the aerial structure
