Truck mounted boom lift 37DJ SPEED
MAX BASKET FLOOR HEIGHT
37,30 m
TURRET ROTATION
700º
OUTRIGGERS
H+H
BASKET FLOOR HEIGHT
35,30 m
BASKET DIMENSIONS
200x80x110 cm
CONTROLS
Electric
MAX OUTREACH
21,00 m
BASKET
Aluminium
GVW
18 tn
BASKET PAYLOAD
300 kg
BASKET ROTATION
90º + 90º
WINCH
No
Designed for demanding professionals

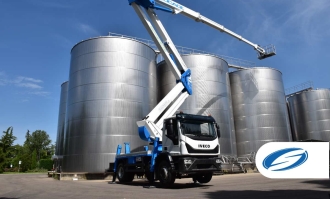

Main arm with articulted JIB

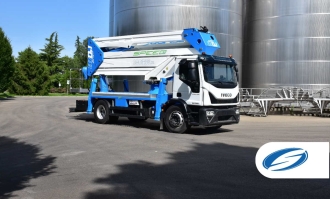

Robustness with great mobility

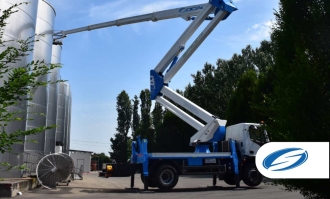

Automatic stabilization

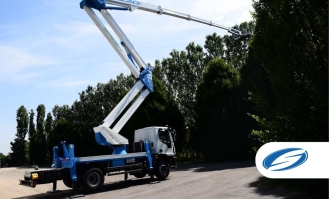

Great side outreach

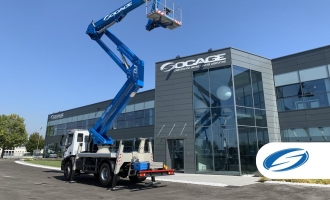

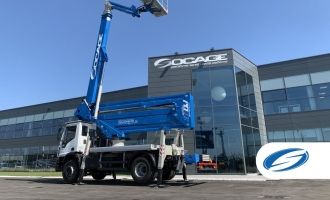

The forSte 37DJ SPEED is a truck mounted boom lift with hydraulic JIB, that can be mounted on 2 axle trucks from 18T.

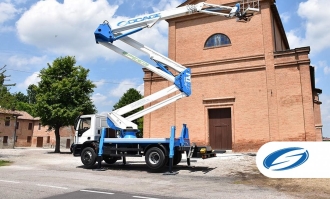

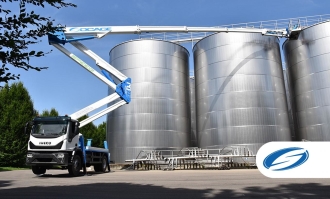

It reaches a working height of 37,30m and a horizontal reach of 21m, in addition has a large load capacity of 280 kg (3 operators + material)
The SOCAGE forSte 37DJ SPEED is the SPEED version of the successful forSte 37DJ. Designed with the aspects most valued by the most demanding professionals such as productivity, mobility and profitability. A new and innovative urban solution and an alternative to high-rise or self-propelled truck platforms.
It has an unusual stabilization system in platforms on trucks over 3500kg. It incorporates as standard the automatic stabilization that together with the fixed vertical stabilization SOCAGE H + H guarantees a stabilization maneuver of great simplicity of use, versatile, fast and safe.
High performance
The SPEED Serie platform works everywhere the truck can access. A single stabilization area with high performance and using the least possible space, no stabilizer exceeds the dimensions of the truck.
For SOCAGE, stabilization is the most important maneuver both from the point of view of safety and productivity. A well stabilized platform is always a safe platform to avoid possible incidents caused by incorrect stabilization. Regarding productivity, it is the most repeated maneuver at work and in many cases it is difficult, a simple stabilization reduces the time dedicated to the maneuver and increases the productivity of the equipment.
The truck mounted boom lift SOCAGE forSte 37DJ SPEED is similar to the usual truck platforms weighing less than 3500kg, this added to the ease of stabilization makes it possible even to rent without a driver. These features make it an excellent alternative to larger self-propelled platforms, especially in short rentals, urban or industrial jobs.
Great mobility
The compact dimensions of the 37DJ ensure great mobility that improves the profitability of the equipment, allowing greater uses in urban and industrial areas. It facilitates access to sites where other platforms with similar features cannot work or have movement difficulties, circulation is prohibited or even need a special license.
The articulated boom together with the robust structural design achieves a very stable aerial part at work and great positioning versatility with greater capacity to overcome obstacles at height than other telescopic truck-mounted platforms of similar height
STANDARD EQUIPMENT
AUTO - STABILIZATION
With a single button, even from the basket, it allows you to obtain a stabilization OK to work in a safe, simple and fast way.
The extra stroke of the Socage vertical stabilizers perfectly integrates the SPEED automatic stabilization guaranteeing a safe stabilization with greater ability to overcome irregularities.
TECHNICAL FEATURES
- Aluminum basket: dimensions 2000 x 800 x 1100 mm
- Hydraulic rotation basket 90° + 90°
- Rotation turret 700°
- Articulated final jib
- SPEED automatic stabilization
- Vertical stabilizers H + H with extra stroke
- Double or triple work area depending on the installation
- Automatic stabilization controls from the basket and from the ground
- Proportional electro-hydraulic controls with speed regulation of all movements
- CAN BUS electronic management system
- Engine start / stop control from the basket
- Heat exchanger
- Digital hour counter
- 4 plates to stand to the ground
- Socket 230v
- Led rotating beacon on truck cab
- Powder coated cataphoresis treatment
- Under-run
- 150 mm aluminum sides
- SSW (Socage Safe Workplace) safety lights on the aerial part
- LED rear bumper lights
- LED lights under the basket
- Working lights on the basket
- Working lights on the aerial part
- Led rotating beacon on the truck cab
SAFETY DEVICES
- Emergency and stop button
- Cross check of open stabilizers
- Multi axial device for visual control of frame stabilization
- Intelligent cabin anti-collision sensor
- Load limiter in the basket
- Moment limiting device with double security
- Emergency manual pump
- Chassis flatness sensor
- Flanged block valves
- Differentiated filtering hydraulic system with high efficiency filters both on the delivery lines and on the return lines
- Automatic leveling of the basket
- PTO automatic cut-off
- Warning horn from the basket
ASSEMBLY AVAILABLE ON
(*) Do you want to install the platform on another model? Contact us.
