Spider boom lifts Raptor 35S
MAX BASKET FLOOR HEIGHT
35,00 m
TURRET ROTATION
400º
OUTRIGGERS
Z+Z
BASKET FLOOR HEIGHT
33,00 m
BASKET DIMENSIONS
1800x700x1100 mm
1200x700x1100 mm
CONTROLS
Electro-hydraulic
MAX OUTREACH
21,00 m
DIMENSIONS
5200 x 4740 mm
5680 x 5450 mm
GVW
8,2 tn
BASKET PAYLOAD
300 kg
BASKET ROTATION
90º + 90º
LIFTING HOOK
500 kg
Compact and robust with great performance
Expandable basket
Compactness
Negative working capability
Ease of use
An extraordinary innovation in the market of tracked aerial platforms
The Socage Raptor 35S represents an extraordinary innovation in the tracked aerial platforms market, successfully combining versatility, ease of use, and high performance in an extremely compact design.

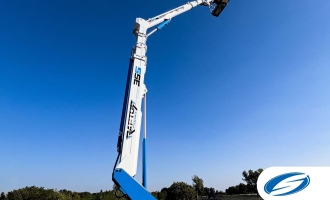

With a maximum working height of 35 m and a lateral outreach of 21 m, the Raptor 35S guarantees a wide working range with a load capacity in the basket of 300 kg (2 operators + material). It is also capable of working in negative positions up to 11 m.
The arms are made of high-strength and quality steel profiles, from a robust structure and a reduced weight that allow the operator precise and comfortable use.

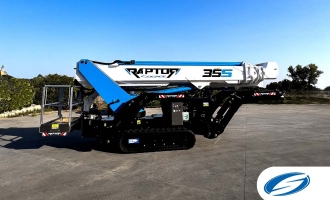

One of the keywords of this model is undoubtedly compactness. The Raptor 35S is the most compact tracked vehicle in its category, with a length of only 6195 mm, making it easy to move and transport in tight spaces.
The basket, measuring 1800x700x1100 mm, allows for greater comfort in high-altitude work and can be narrowed to fit into tight spaces without needing to be dismantled. It also features a detachable 500kg hook support.

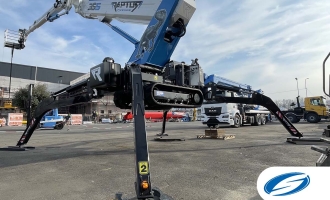

Automatic stabilization and closing
The Raptor 35S comes standard with automatic stabilization and closing for simple, fast, and safe use.
An additional advantage is the high articulation point of 20 m (Up&Over), which, along with the significant lateral outreach of 21 m, facilitates access to areas that are difficult to reach in other ways.
Ideal for both rental and professionals looking for an efficient and high-performing tracked platform, the Raptor 35S presents itself as the market solution capable of combining technological innovation and advanced functionality to meet the demands of the most exigent users.
STANDARD EQUIPMENT
TECHNICAL FEATURES
- Extendable basket
- Electric hour-counter
- Manual hand pump
- 230V electric socket in the basket
- Multifunction remote control
- Auxiliary electric pump 230V-50Hz Flanged
- Holding valves
- Diesel engine
- Automatic closing
- Automatic stabilization
