Boom lift Truck  ForSte 25D SPEED

Boom lift Truck ForSte 25D SPEED
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

24,20 m

rotacion torreta 2
TURRET ROTATION

700º

stabilizzatori
OUTRIGGERS

HE+H

altura cesta 4
BASKET FLOOR HEIGHT

22,20 m

dimensiones cesta 5
BASKET DIMENSIONS

140x70x110 cm

controles 6
CONTROLS

Electric

alcance lateral 7
MAX OUTREACH

12,30 m

cesta 8
BASKET

Aluminum/ Fiberglass
Polyethylene

pma 9
GVW

3,5 tn

carga cesta 10
BASKET PAYLOAD

300 kg

rotacion cesta 11
BASKET ROTATION

90º + 90º

cabrestante 12
WINCH

No

speed aerial platform

The articulated most productive

N

Double articulated boom

N

Different stabilization areas

N

Great ability to overcome differences in height

N

Wide work diagram

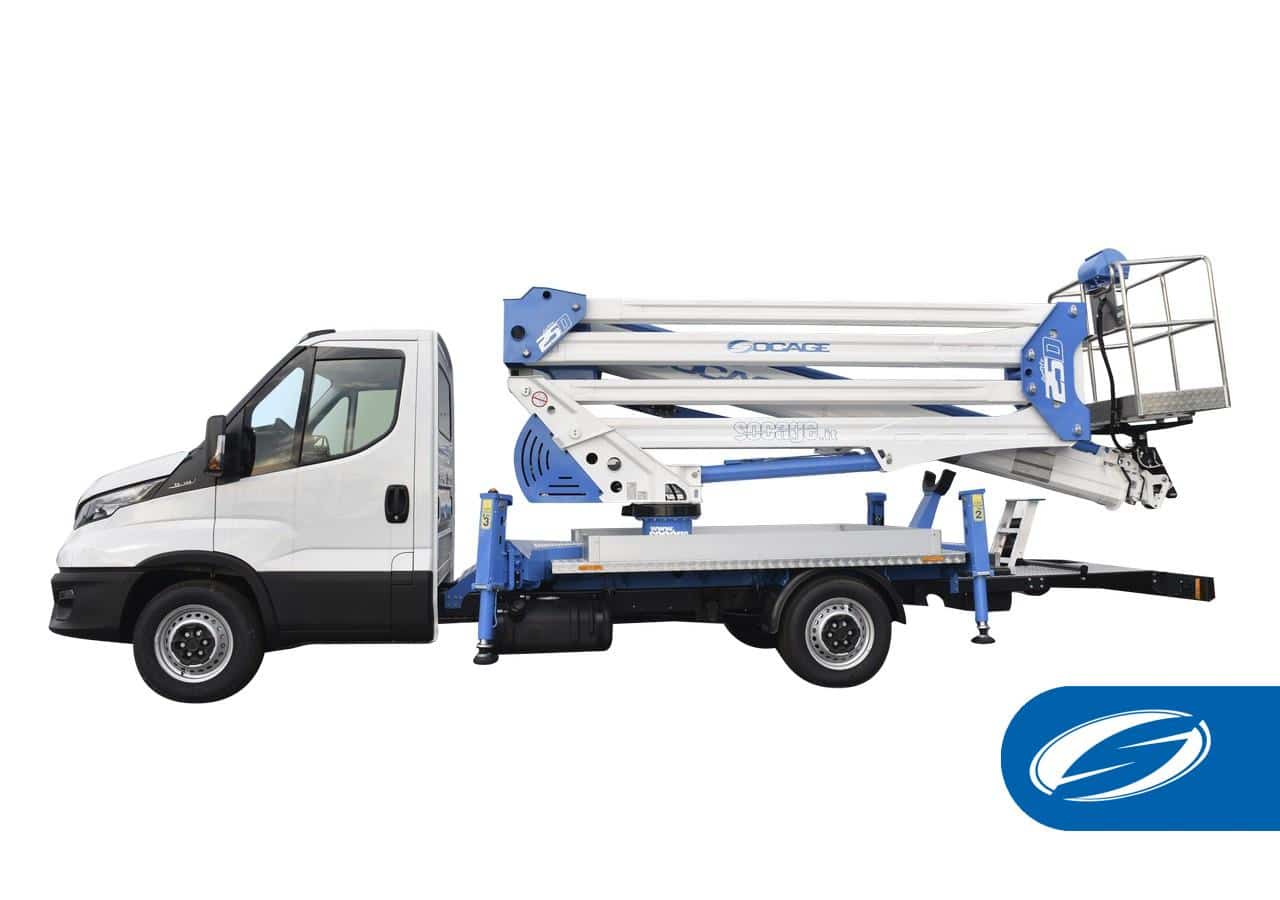

The ForSte 25D SPEED is a high-performance double-articulated platform with standard automatic stabilization mounted on a 3500kg truck. It reaches a working height of 24.20 m and a lateral reach of 12.30 m with a load capacity of 300 kg in the basket, (2 operators + material).

Heavy duty steel (SPP) in the manufacture of the forSte 25D SPEED guarantee a high-quality light platform with a stable and versatile aerial part during the job

The excellent performance and double articulation of the boom lift truck 25D give it a greater ability to overcome obstacles at height than other models and types of platforms.

Automatic stabilization as standard

On a productive level, the ideal complement to the high working height is the SPEED HE + H finish. It incorporates the standard automatic stabilization that provides the equipment with simplicity and versatility of use, increasing the safety of the stabilization maneuver. It enables stabilization from the basket and automatic closing of the aerial part.

SPEED HE + H automatic stabilization is a versatile multizone system with differentiated areas and hydraulic extension of the front crossmember that allows different stabilization possibilities to optimize the use of space in each situation. The front  crossmembers are hydraulically extended to increase the stabilization zone..

Greater ability to overcome slopes

The longest path of the SOCAGE vertical stabilizers allows greater ability to overcome slopes, making it easier to work without damaging the stabilization surface.

It incorporates the new hydraulic installation that with the Socage control console allows smoother and more proportional movements for greater control by the operator, even with simultaneous maneuvers.

Reliability and ease of use

The reliability and simplicity of use together with the wide work diagram make the forSte 25D an outstanding work platform, highly valued for professionals working at height and also by rental companies that want to offer the  most complete platforms with  high performance to their customers.

STANDARD EQUIPMENT

stabilizzazione

AUTO - STABILIZATION

Innovative standard solution in truck-mounted platforms, it brings great advantages and increases safety, facilitates the correct use of the stabilization maneuver.

With a single button, even from the basket, it allows you to obtain a stabilization OK to work in a safe, simple and fast way.

The extra stroke of the Socage vertical stabilizers perfectly integrates the SPEED automatic stabilization guaranteeing a safe stabilization with greater ability to overcome irregularities.

caracteristiche tecniche

TECHNICAL FEATURES

  • Hydraulic rotation basket 90° + 90°
  • Rotation turret 700°
  • Pipes and cables installed inside the boom
  • Automatic closing of the aerial part
  • Stabilization from the basket
  • SPEED HE + H multizone automatic stabilization
  • Hydraulic extension of the front crossmember
  • Vertical stabilizers with extra stroke
  • Automatic stabilization controls in the basket and on the ground
  • Proportional electro-hydraulic controls with speed regulation of all movements
  • Possibility of simultaneous operation
  • Signal to center the aerial part on the basket
  • Socket 230v and 12v in the basket
  • Automatic regulation of engine revolutions
  • CAN BUS electronic management system
  • Cataphoresis
  • 4 plates to stand to the ground
sicurezza

SAFETY DEVICES

  • Unintentional maneuvering control E.C.S (Easy Control Security)
  • Protection bar for involuntary maneuvers
  • Basket controls protection
  • Magnetothermic with 230V line differential protection
  • Automatic stabilization
  • Safety bypass for operator recovery
  • Moment limiting device with double security
  • Automatic stabilization from the basket
  • Inclinometer
  • Flanged block valves
  • Emergency and stop button
  • Emergency manual pump
  • Possibility of remote emergency operation
  • PTO with save changes
  • Boom / cabin anti-collision device
  • Digital hour meter in the cabin
  • Cabin warning light of closed stabilizers
  • Maintenance light (Service)

ASSEMBLY AVAILABLE ON

isuzu ford iveco mercedes renault

(*) Do you want to install the platform on another model? Contact us.
