Pick up ForSte 14A

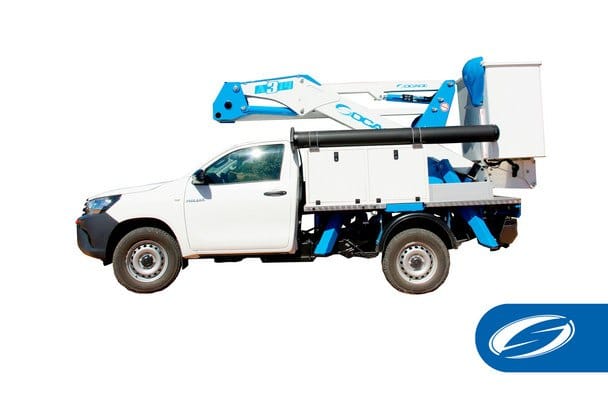

pick up with lift basket ForSte a314 TOYOTA HILUX Socage
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

13,20 m

rotacion torreta 2
TURRET ROTATION

700º

estabilizador 3
OUTRIGGERS

A+A / H+H

altura cesta 4
BASKET FLOOR HEIGHT

11,20 m

dimensiones cesta 5
BASKET DIMENSIONS

140x70x110 cm

controles 6
CONTROLS

Electric

alcance lateral 7
MAX OUTREACH

7,20 m

cesta 8
BASKET

Aluminum / Fiberglass
Polyethylene

pma 9
GVW

3 tn / 3,2 tn

carga cesta 10
BASKET PAYLOAD

250 kg

rotacion cesta 11
BASKET ROTATION

90º + 90º

cabrestante 12
WINCH

No

The real 4×4 bucket truck

N

Upper comfort

N

Many customization possibilities

N

Off-road performance and finish

N

Unrestricted free work area

The SOCAGE forSte 14A is an articulated platform designed and optimized to be mounted on pickups, both 4×2 and 4×4.

Since its creation, it has become the European benchmark in the pickup market and the best-selling 4×4 aerial platform model in Europe, the authentic 4×4 platform.

This model reaches a working height of 13.50 m with a horizontal reach of 7 m, in addition has a large load capacity of up to 250 kg (2 operators + material), without limitations in the entire job area.

Compact size, easy to use and reliable.

Its compact dimensions, without rear overhang, the studied load distribution and the 4×4 design guarantee excellent performance, for work at height in places with difficult access, where the usual platforms cannot access.

Comfort and mobility

The comfort and great mobility of the pickup vehicle, 4×2 or 4×4, provide great functionality to the platform, making it an excellent solution both for outside and inside urban environments.

The electro-hydraulic controls allow great precision and simplicity in movements. All the components are protected inside the boom, including the extension cylinder, to avoid damage from impacts or external elements.

The reduced weight of the set, the large free space in the box and the possibility of increasing the PMA of the pick up to 3500kg (*), allows offering high-quality optional equipment that together with the available payload allows satisfying the needs of each client .

The versatility and possibility of customization of the 14A on pick-up trucks have made it one of the vehicle platforms with the greatest presence in the fleets of the most important maintenance companies, especially in the energy and telecommunications sectors, among others.

Available to be mounted on both 4×2 and 4×4 models of Toyota Hilux, Isuzu D-Max and Ford Ranger pickups.

(*) The possibility of increasing the PMA depends on the pick-up model and the country of approval.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL FEATURES

  • Rotation turret 700º
  • Pipes and cables installed inside the boom
  • Stabilizers A+A
  • Proportional electro-hydraulic controls with speed regulation of all movements
  • Comando di avviamento/arresto del motore dal cestello
  • Possibility of simultaneous operation
  • 230V and 12V socket on the basket
  • Cataphoresis treatment with powder coatinge
  • 4 plates to stand to the ground
  • Boom and column painting: white RAL 9016
  • Frame painting: black RAL 9005
  • Cylinder head and hydraulic cylinders painting: blue RAL 5015
sicurezza

SAFETY DEVICES

  • Unintentional maneuvering protection bar
  • Basket controls protection
  • Magnetothermic with 230V line differential protection
  • Automatic stabilization from basket
  • Inclinometer
  • Flanged block valves
  • Emergency and stop button
  • Emergency manual pump
  • PTO with save changes
  • Digital hour meter in the cabin
  • Cabin warning light of closed stabilizers
  • Maintenance light (Service)
