Large cherry picker with JIB ForSte 75TJJ

The large cherry picker 75TJJ is an aerial work platform with a jib that can be installed on trucks with p.t.t. minimum from 32 tons. This model is provided with a secondary boom that allows the equipment to perform maneuvers that would not be possible with a basket with only one JIB

It reaches a working height of 75m and a horizontal reach of 40m, in addition has a large load capacity of 600 kg (6 operators + material)

This model is equipped as standard, on the platform controls, with an LCD screen (7 ″) that allows the operator to control different information such as: 2D work area, limiter status, stabilizers status, etc.

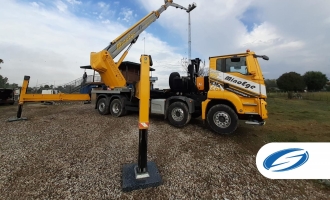

The large cherry picker 75TJJ is equipped as standard with a multi-zone stabilization system that allows the operator to choose between different options depending on the available space for the truck; In addition, the rear stabilizing crossmembers have 2 hydraulic extensions that increase the stabilization area and, therefore, the maximum performance of the equipment.

The emergency controls are remotely controlled by radio control to allow the operator to position himself according to the best point of visibility of the entire assembly during the maneuver.

The rotation of the aerial part is 700º, this feature increasing the productivity of the truck by avoiding downtime due to repositioning of the platform. The large cherry picker 75TJJ can be equipped with a boom mounted hydraulic winch, with a capacity of 900/1500 kg, to be used as a crane after removing the aluminum basket..

The dimension of the aluminum basket is 2300 x 900 x h 1100 mm, expanding hydraulically to 3600 mm to increase the workspace. The rotation of the basket is 360º (180 ° left + 180 right) allowing great versatility of positioning for the job, even under a bridge
