Electric cherry Raptor 12STE

Electric cherry picker 12STE
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

12,20 m

rotacion torreta 2
TURRET ROTATION

190º+190º

estabilizador 3
OUTRIGGERS

Z+Z

altura cesta 4
BASKET FLOOR HEIGHT

10,20 m

dimensiones cesta 5
BASKET DIMENSIONS

1400x700x1100 mm

controles 6
CONTROLS

Electro-hydraulic

alcance lateral 7
MAX OUTREACH

8,30 m

pma 9
GVW

2,0 ton

carga cesta 10
BASKET PAYLOAD

230 kg



rotacion cesta 11
BASKET ROTATION

60º + 60º



dimensioni ragno
DIMENSIONS
3150 x 3000 mm
cabrestante 12
LIFTING HOOK



battery socage
BATTERY

44V – 10,12kWh – 228Ah

se-electric-series-logo
se-electric-series-logo
battery socage
BATTERY

44V – 10,12kWh – 228Ah

The electric telescopic tracked platform that combines silence, power, and zero emissions.

N

Clean energy, high performance.

N

Ideal for indoor spaces.

N

Fast charging and continuous operation.

N

Compact, silent, sustainable.

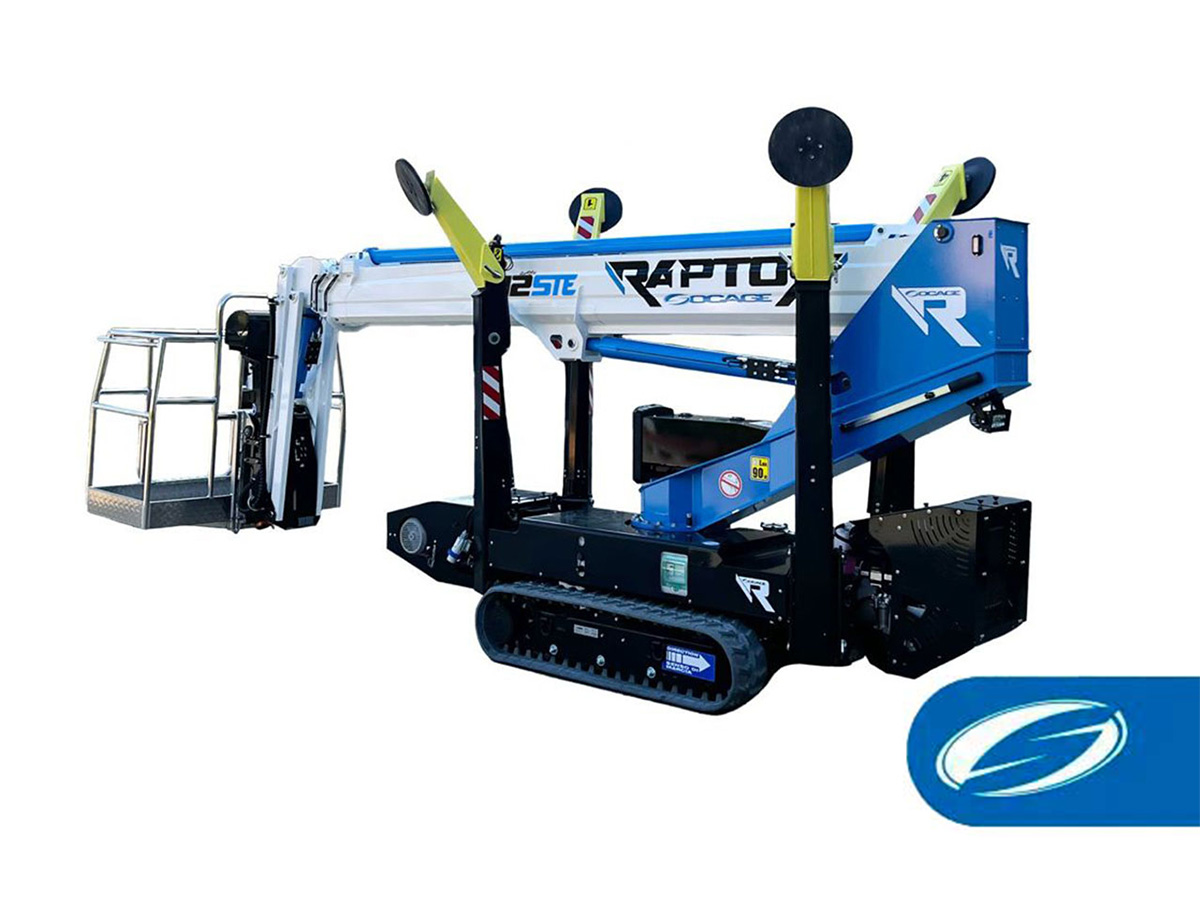

Raptor 12STE is the fully electric version of the 12ST model, perfect for those who need a compact, silent and zero-emission trucked platform. Thanks to the latest generation lithium battery, this platofrm ensures high performance and maximum efficiency, maintaining the same agility and ease of use that distinguish the Raptor series.

Perfect for working indoors or in environmentally restricted settings such as hospitals, airports or shopping centres, the 12STE offers a maximun working height of 12,20 meters and a lateral outreach up to 8,30 meters. The full charge of the battery allows at least 15 complete work cycles (stabilization, development and closure of the aerial part, destabilization and displacement).

Fast charging allows to reach 60% charge in just 4 hours and 100% in 8 hours, with the possibility of operating even with the power cable connected.

Compact, eco-friendly and powerful, the Raptor 12STE is the ideal choice for those looking for high productivity while respecting the environment.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL FEATURES

  • Hydraulically extendable chassis
  • White non-marking tracks
  • Electric hour meter
  • Manual emergency pump
  • 230 V power outlet in the basket
  • Multifunction remote control
  • Auxiliary electric pump 230 V-50 Hz
  • Flanged lock valves
  • Lifting hook support
  • LANATEC battery pack motor
  • Automatic work area closure
  • Automatic stabilization
  • Removable basket
