Electric cherry picker 15STE

Electric cherry picker 15STE
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

14,90 m

rotacion torreta 2
TURRET ROTATION

190º+190º

estabilizador 3
OUTRIGGERS

Z+Z

altura cesta 4
BASKET FLOOR HEIGHT

12,90 m

dimensiones cesta 5
BASKET DIMENSIONS

1400x700x1100 mm

controles 6
CONTROLS

Electro-hydraulic

alcance lateral 7
MAX OUTREACH

10,70 m

pma 9
GVW

2,0 ton

carga cesta 10
BASKET PAYLOAD

230 kg



rotacion cesta 11
BASKET ROTATION

60º + 60º



dimensioni ragno
DIMENSIONS
3150 x 3000 mm
cabrestante 12
LIFTING HOOK

230 kg



battery socage
BATTERY

44V – 10,12kWh – 228Ah

se-electric-series-logo
se-electric-series-logo
battery socage
BATTERY

44V – 10,12kWh – 228Ah

Efficiency and sustainability in an electric telescopic tracked platform.

N

Silent and zero emissions.

N

Power without compromise.

N

Perfect for sensitive areas.

N

Long-lasting autonomy.

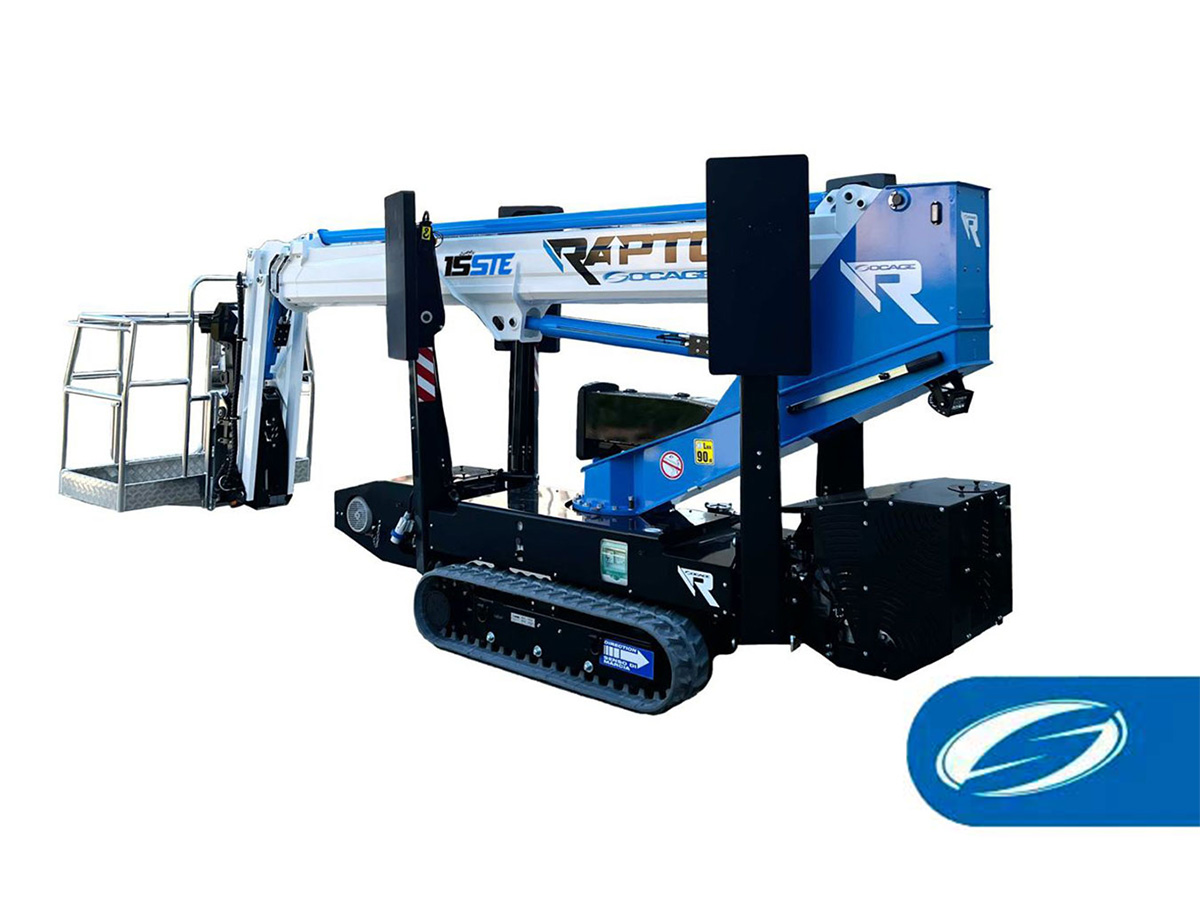

The Raptor 15STE representa the perfect balance between power, efficiency and sustainability. Fully electric and powered by a lithium battery, this telescopic platform allows to operate without emissions and with a noisy level extremely low, making it ideal for work in sensitive environments or urban areas.

With a working height of 14,90 meters and a maximum lateral outreach of 10,70 meters, the Raptor 15STE maintains the same performance as the traditional model, offering a capacity of the basket of 230kg for two operators with equipment. The battery guarantees at least 15 complete work cycles for each charge, with fast charging times of up to 60% in 4 hours and complete in 8 hours.

The combination of stability and silence makes the Raptor 15STE the perfect platform for those who want to combine operational efficiency and respect for the environment.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL FEATURES

Automatic closing
• Automatic stabilization
• Quick release of the basket
• Lifting Hook Support 230kg
• SSW: LED safety lights
• LED travel light
• Booms realized in profiles advanced high tensile steel
• Jib lifting during travel
• Cataphoresis treatment
• Hydraulically extendable tracks
• White non-marking tracks
• Lifting hook on stabilisers
• Extra-large outrigger plates
• Pre-installation for Raptor Stab. Optional
• Socage Connect
• Integrated charger + extra battery for radio control
• Multifunction hydraulic distributor
• Manual hand pump
• 230V electric socket in the basket
• Multifunction radio control
• Auxiliary electric pump 230V-50Hz
• 10kW 48V Lithium battery pack
• Trailer transport + Raptor Trailer optional
