Electric cherry picker 18STE

Electric cherry picker 18STE
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

17,80 m

rotacion torreta 2
TURRET ROTATION

190º+190º

estabilizador 3
OUTRIGGERS

Z+Z

altura cesta 4
BASKET FLOOR HEIGHT

15,80 m

dimensiones cesta 5
BASKET DIMENSIONS

1400x700x1100 mm

controles 6
CONTROLS

Electro-hydraulic

alcance lateral 7
MAX OUTREACH

10,50 m

pma 9
GVW

2,0 ton

carga cesta 10
BASKET PAYLOAD

230 kg



rotacion cesta 11
BASKET ROTATION

60º + 60º



dimensioni ragno
DIMENSIONS

3000 x 3150 mm
3150 x 3450 mm

cabrestante 12
LIFTING HOOK



battery socage
BATTERY

44V – 10,12kWh – 228Ah

se-electric-series-logo
se-electric-series-logo
battery socage
BATTERY

44V – 10,12kWh – 228Ah

Power and sustainability in a new-generation electric telescopic tracked platform.

N

Zero emissions, maximum autonomy.

N

Silent and high-performing.

N

Perfect for indoor and outdoor use.

N

Efficiency without compromise.

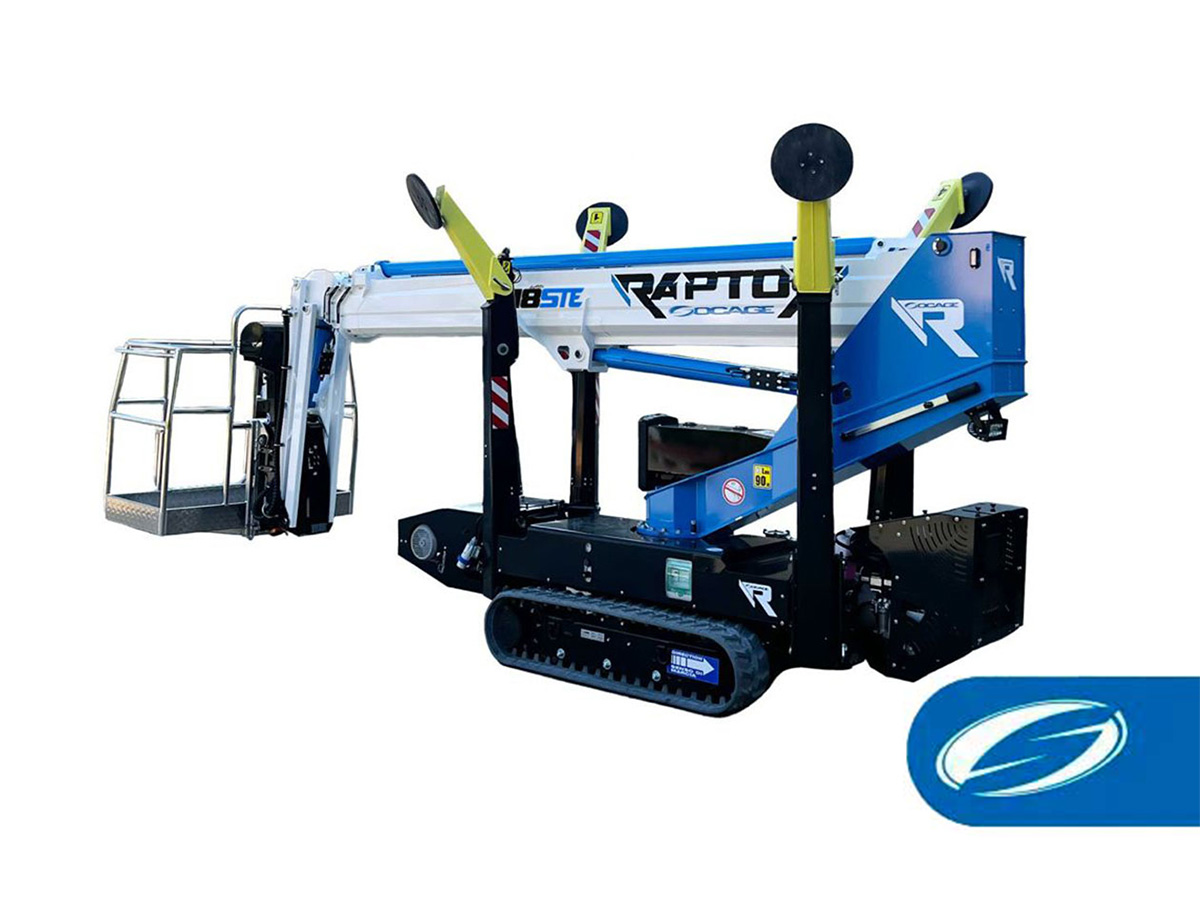

The Raptor 18STE is the trucked platform 100% electric which combines the professional performance of the Raptor series with the most advanced lithium battery technology. Ideal for both internal and external uses, it offers zero emissions, operational silence and high working autonomy.

With a maximum working height of 17,80 meters and a lateral outreach up to 10,50 meters, the 18STE guarantees stability, precision and comfort for two operators thanks to the 230 kg capacity basket.

The battery allows at least 15 complete work cycles on a single charge, while fast charging allows to reach 60% in 4 hours and 100% in 8 hours. You can also work by connecting the power cable for continuous operations.

The Raptor 18STE combines power and sustainability in a single machine: the ideal solution for those looking for high performance, reliability and reduced environmental impact.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL FEATURES

  • Hydraulically extendable chassis
  • White non-marking tracks
  • Electric hour meter
  • Manual emergency pump
  • 230 V power outlet in the basket
  • Multifunction remote control
  • Auxiliary electric pump 230 V-50 Hz
  • Flanged lock valves
  • Lifting hook support
  • LANATEC battery pack motor
  • Automatic work area closure
  • Automatic stabilization
  • Removable basket
