Spider cherry picker Raptor 21S

MAX BASKET FLOOR HEIGHT

20,80 m

TURRET ROTATION

190º+190º

OUTRIGGERS

Z+Z

BASKET FLOOR HEIGHT

18,80 m

BASKET DIMENSIONS

140x70x110 cm

CONTROLS

Electro-hydraulic

MAX OUTREACH

11,30 m

BASKET

Aluminium

GVW

2,6 ton

BASKET PAYLOAD

230 kg

BASKET ROTATION

60º + 60º

DIMENSIONS

3000 x 3150 mm |

3150 x 3450 mm

Compact and robust with great performance

Greater strength and stability

Simplicity and reliability

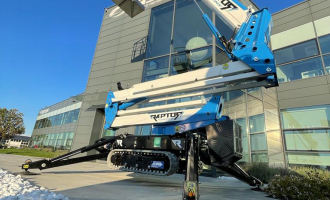

Bi-energy

Extendable tracks

The spider cherry picker RAPTOR 21S is a tracked lift with a maximum working height of 20.80 m and a maximum lateral outreach of 11.30 m.

Its basket payload is 230 kg (2 operators + material) in the whole working area without any limitation. It is fitted with automatic stabilization and automatic closing.

This crawler platform is equipped as standard with a multifunctional remote control capable of allowing not only the movements of the aerial part, but also greater safety and comfort for the operator.

Versatility with Bi-energy in a spider cherry picker

Sustainable platform of 0% emissions, bi-energy as standard, in addition to the diesel engine incorporates a 230V electric motor that allows working without emissions, essential in some enclosed spaces such as churches, airports or factories.

The spider cherry picker RAPTOR 21S has a reduced weight and dimensions. It is equipped with extendable tracks and it is fitted with white non-marking tracks designed for use in enclosed spaces. The translation of the tracks has three different speeds.

The rotation of the aerial part of 380º and the hydraulic jib next to the double articulated arm allow a wide work maneuverability.

STANDARD EQUIPMENT
