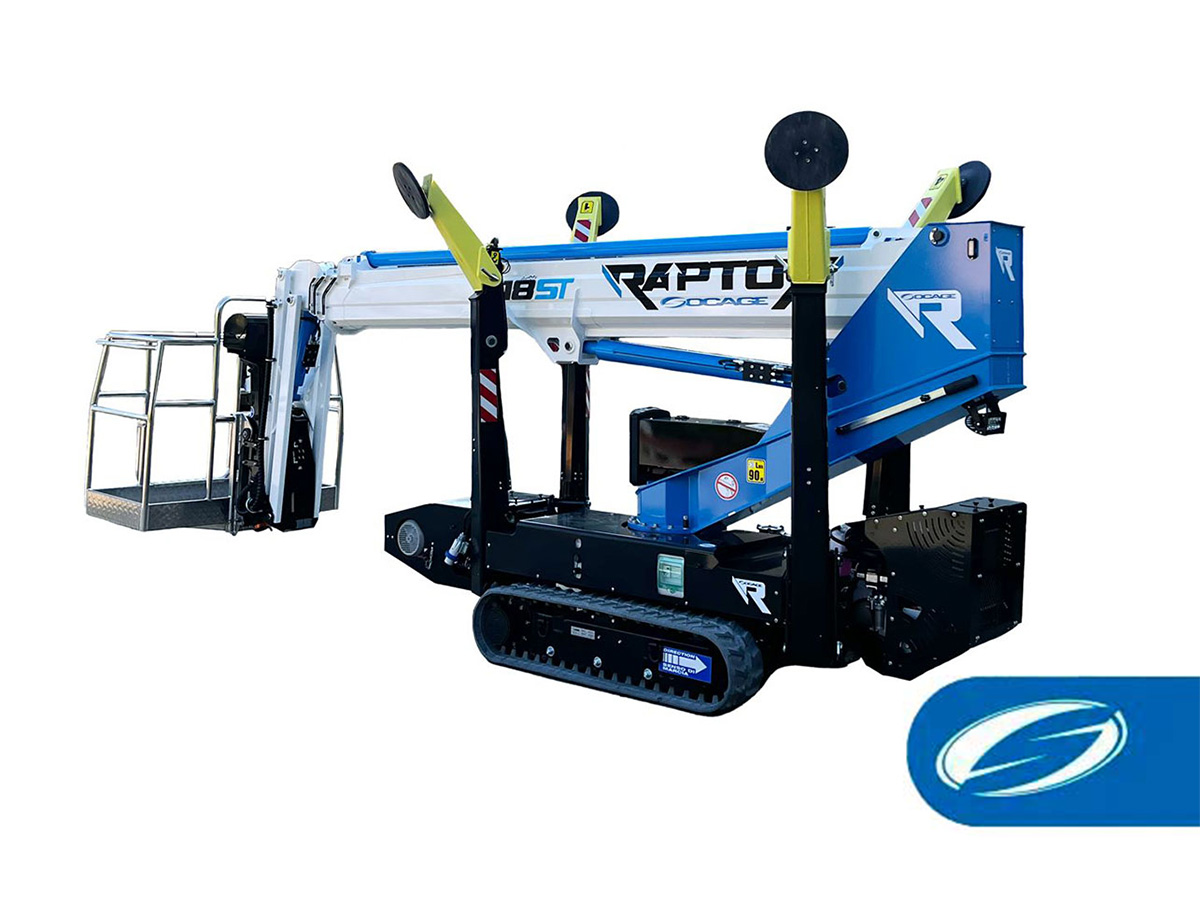

Spider Lift Raptor 18ST

Spider Lift Raptor 18ST
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

17,80 m

rotacion torreta 2
TURRET ROTATION

190º+190º

estabilizador 3
OUTRIGGERS

Z+Z

altura cesta 4
BASKET FLOOR HEIGHT

15,80 m

dimensiones cesta 5
BASKET DIMENSIONS

140x70x110 cm

controles 6
CONTROLS

Electro-hydraulic

alcance lateral 7
MAX OUTREACH

10,50 m

pma 9
GVW

2,0 T

carga cesta 10
BASKET PAYLOAD

230 kg

rotacion cesta 11
BASKET ROTATION

60º + 60º

dimensioni socage
DIMENSIONS
3000 x 3150 mm
3150 x 3450 mm
cabrestante 12
HOOK

Innovation and power in a compact and reliable telescopic tracked platform.

N

Ready to work in just a few minutes

N

Precision in every movement

N

Safety without compromise

N

Efficiency that makes the difference

The Raptor 18ST represents a perfect balance between technological innovation and ease of use, a relialbe, fast and safe solution in every operational situation. One of its main strengths is the ease of use: the operator is able to start working in a few minutes, drastically reducing start-up times and increasing daily productivity.

It can provide up to a maximum working height of 17,80 meters and a lateral outreach of up to 10,50 meters, always mantaining maximum stability and safety. The basket, with its playload of 230kg, allows to operate easily with two operators and equipment and its possibility of being dismantled adds further operational flexibility. The tower rotation of 190°+190° and the basket rotation of 60°+60° allow precise positioning and optimal freedom of movement even in the most complex spaces.

Every details is designed to ensure reliability and continuity of work, from the white anti-track tracks, which ensure movement without damaging surfaces, to the manual emergency pump and the auxiliary electric pump, which offer a superior level of safety and independence.

Compact in size but extremely high-performance in its operational capabilities, this platform is the ideal choice for those who want to combine speed, ease of use and high-level performance, without compromising quality and safety.

The Raptor 18ST is a tracked platform ready to answer to the needs of professionals looking for concrete tools to increase efficiency and face daily challenges with a real competitive advantage.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL FEATURES

  • Undercarriage hydraulically expandable
  • White non marking tracks
  • Electric hour-counter
  • Manual hand pump
  • 230V electric socket in the basket
  • Multifunction radio control
  • Auxiliary electric pump 230V-50Hz
  • Flanged holding valves
  • Diesel engine
  • Outrigger plates
  • Lifting hook support
  • Automatic closing
  • Automatic stabilization
  • Removable basket
